Drone frame for additive manufacturing

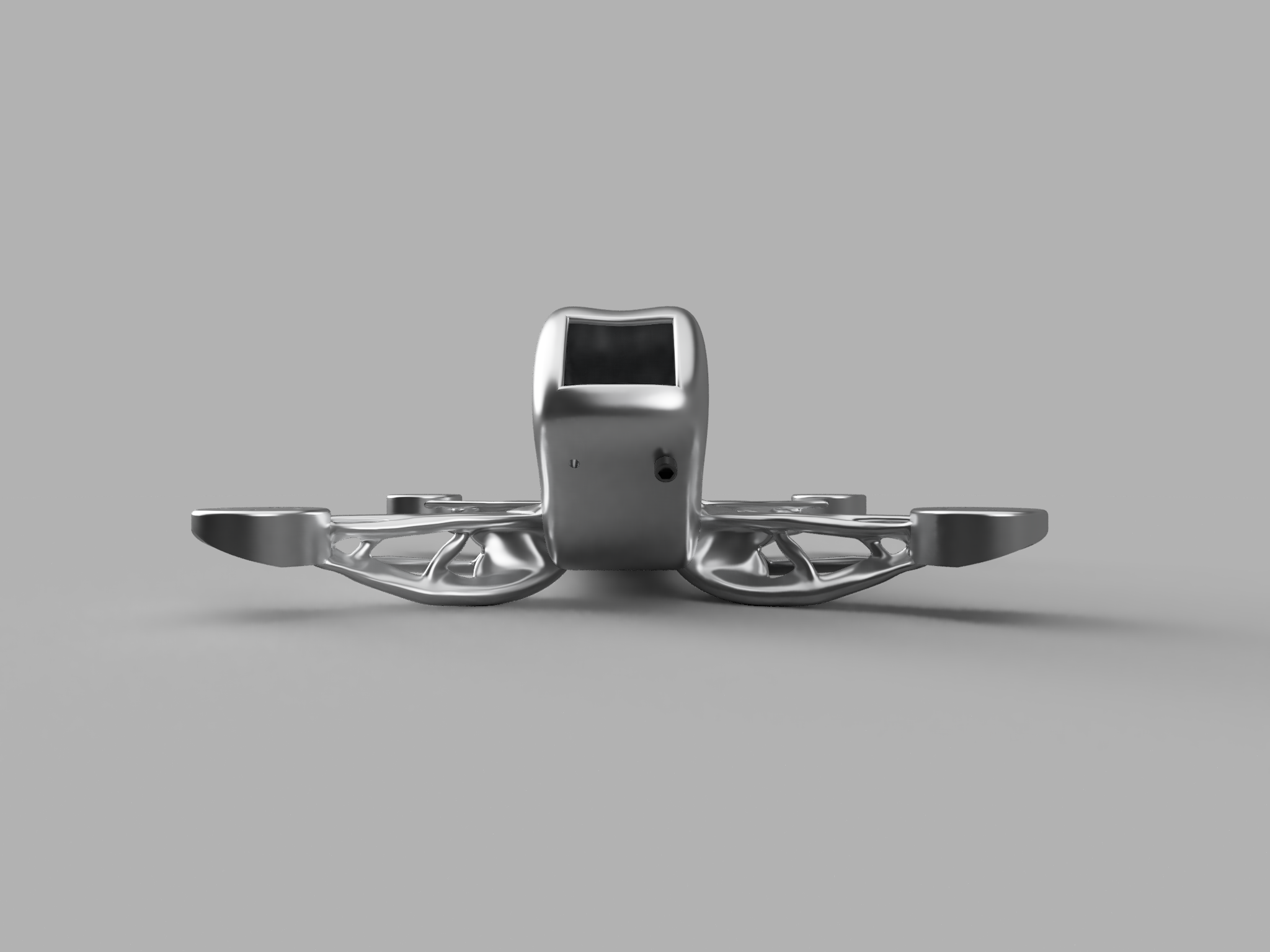

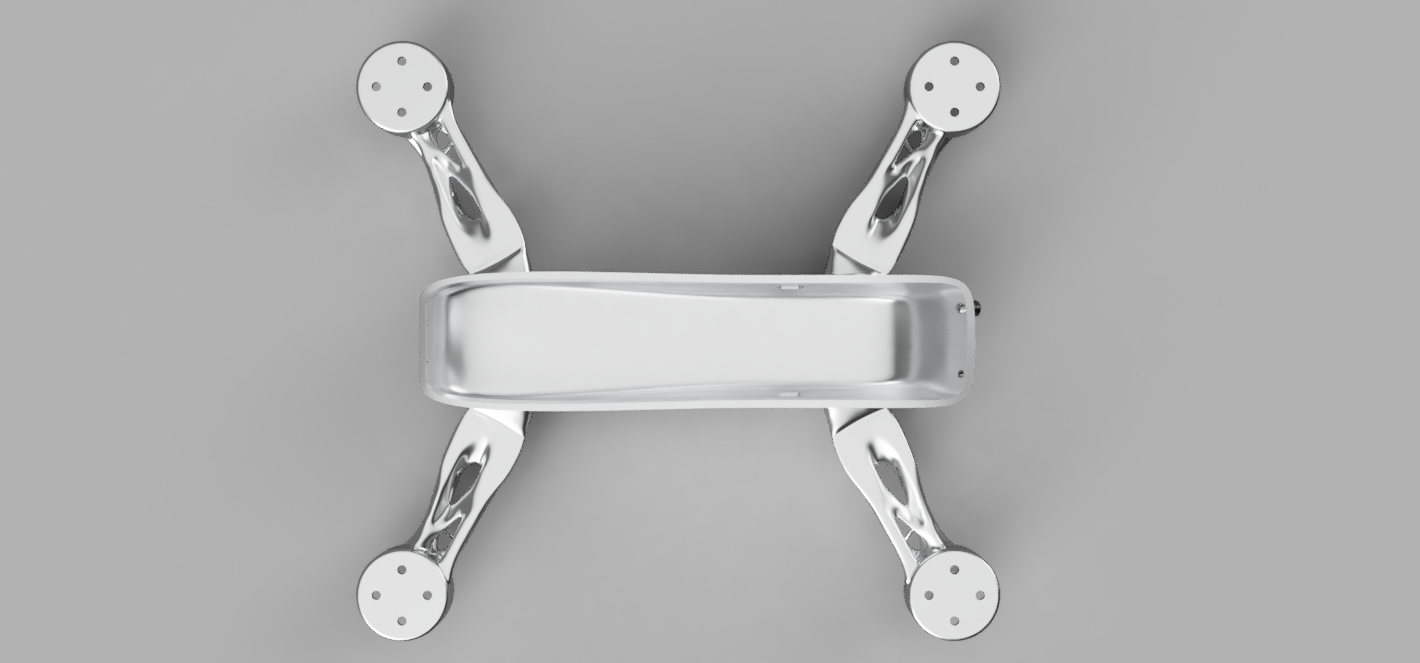

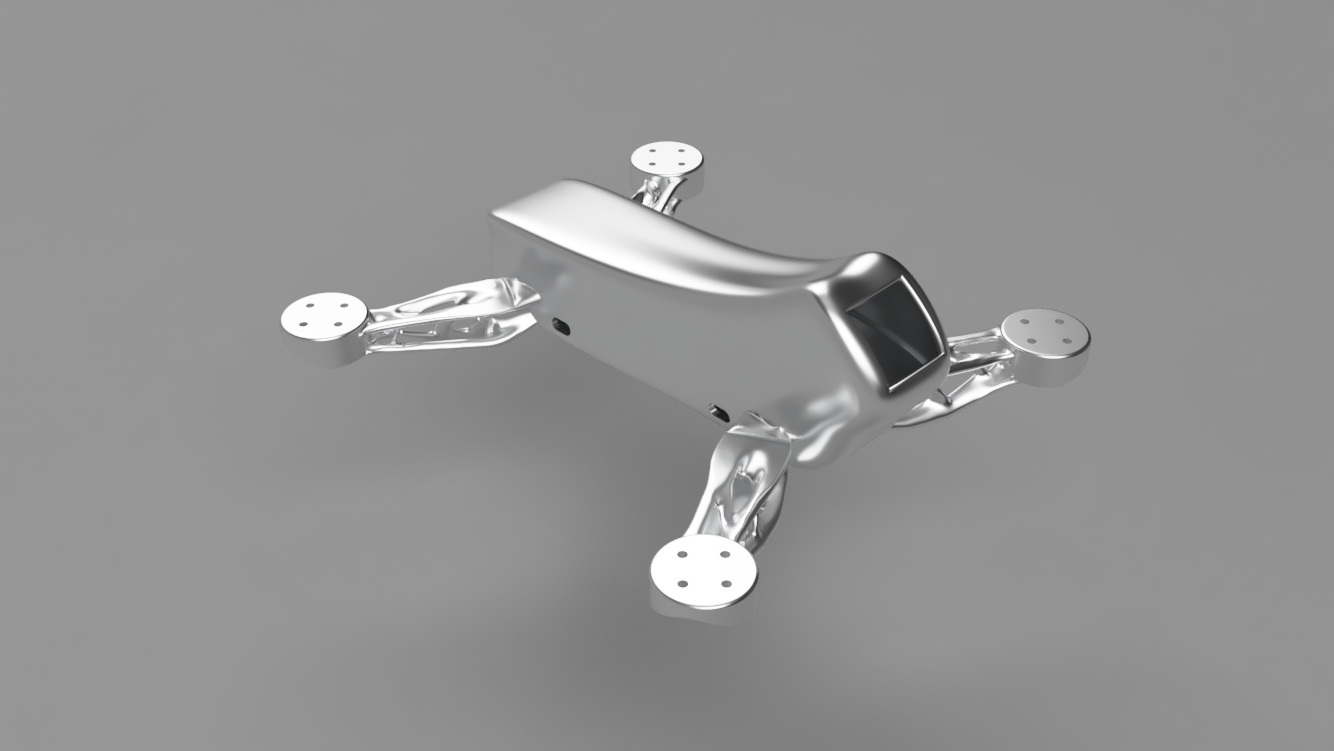

Aluminium drone

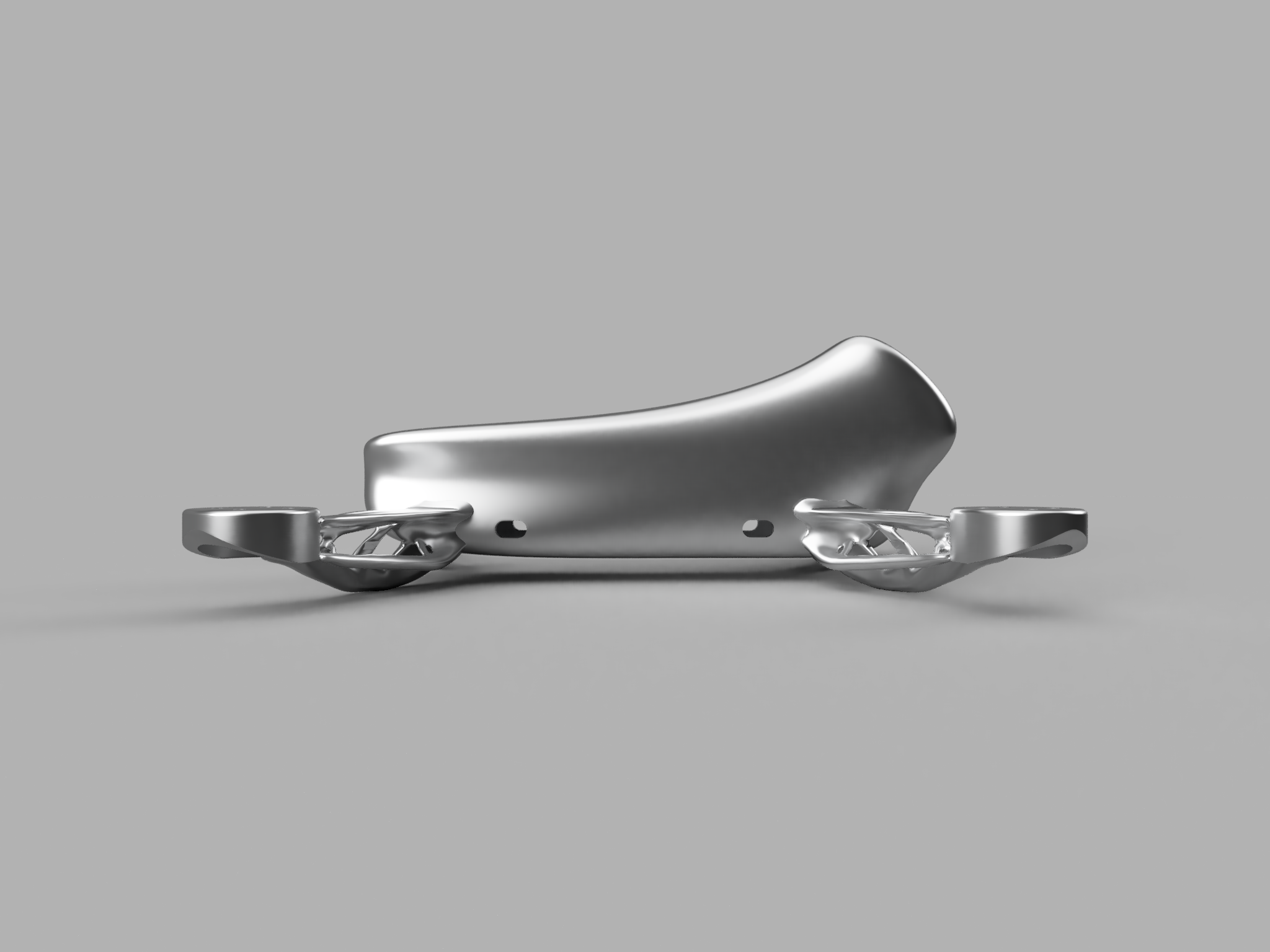

Self-supporting faired drone chassis. The arms are optimized for construction in AlSi10 through generative design; the chassis was designed in Fusion 360. It consists of a lower cover and an upper cover screwed together.
Specifications
| Property | Value | Unit |
|---|---|---|
| Mass | 260.3 | g |
| Cost | 195.67 | € |
| Additive manufacturing yield | 0.56 | |
| Raw material cost | 134 | €/kg |
| Manufacturing time | 260.31 | h |
| Manufacturing method | DMLS | |
| Material | AlSi10 | |
| Density | 2.59 | g/cm³ |
| Part volume | 98.08 | cm³ |
Gallery
