Grasshopper projects

Grasshopper and RhinoCommon scripting, parametric design

Fuller dome using Anemone for loop control
Fuller iterations with Grasshopper

Fuller dome using Anemone for loop control

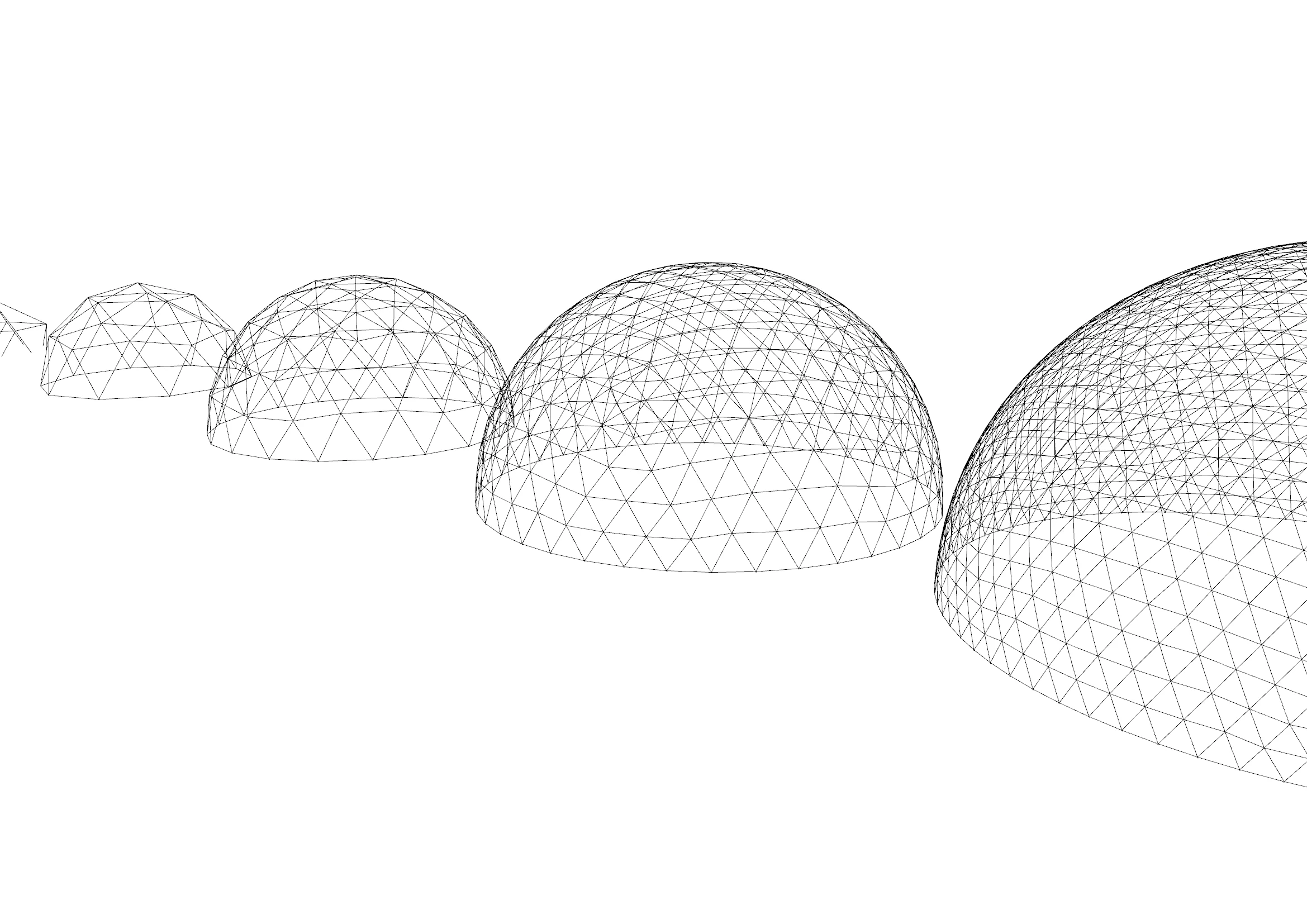

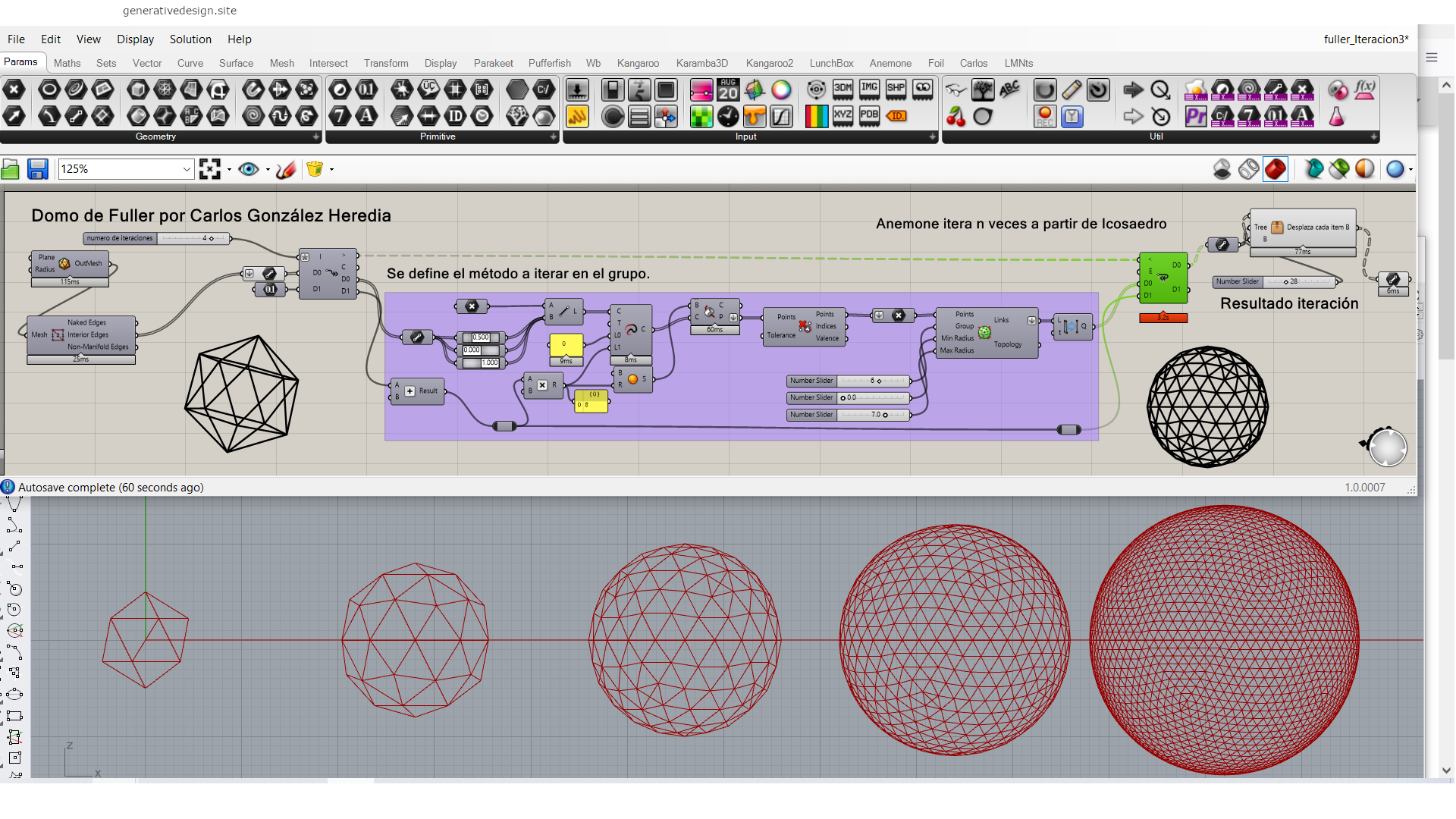

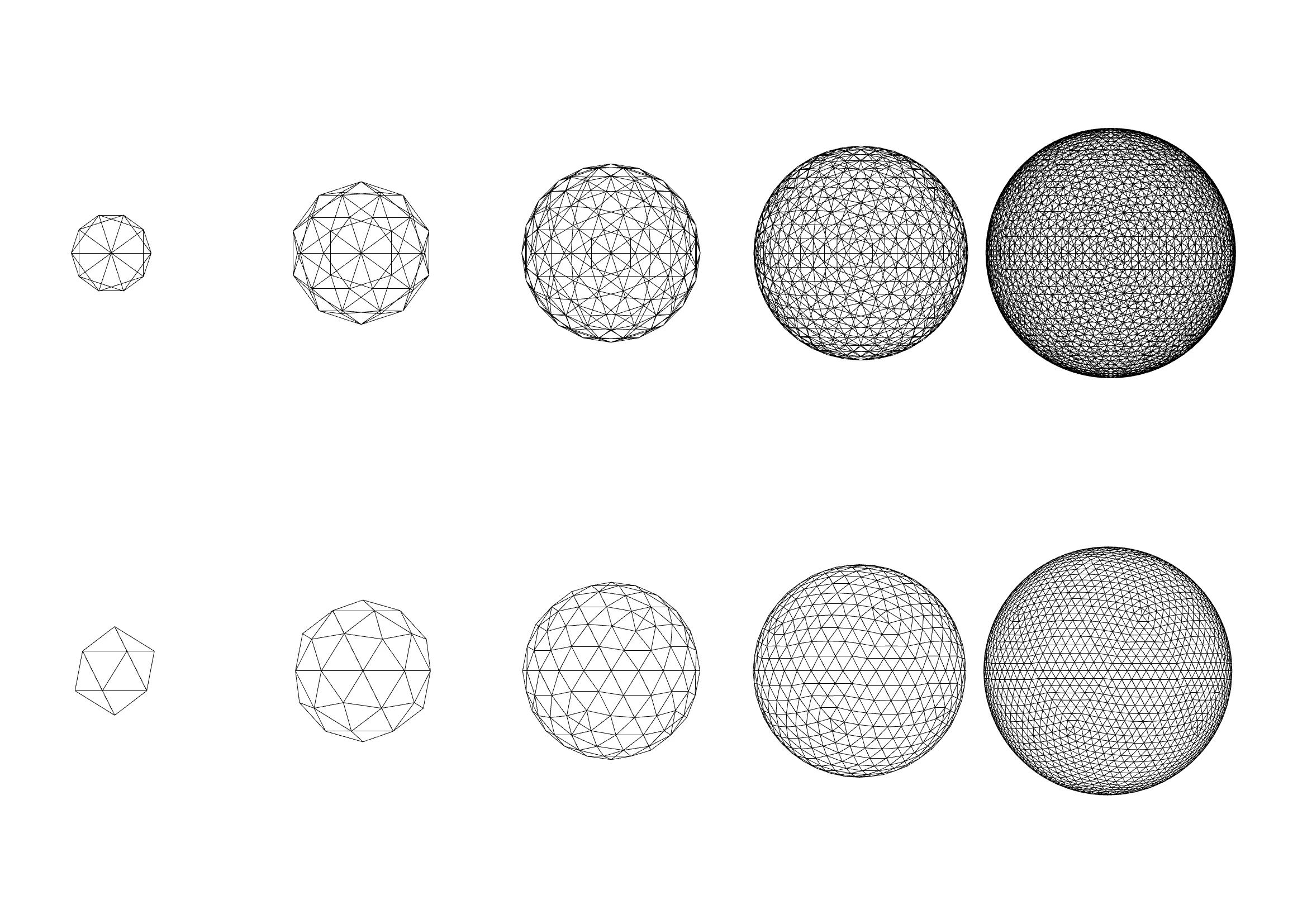

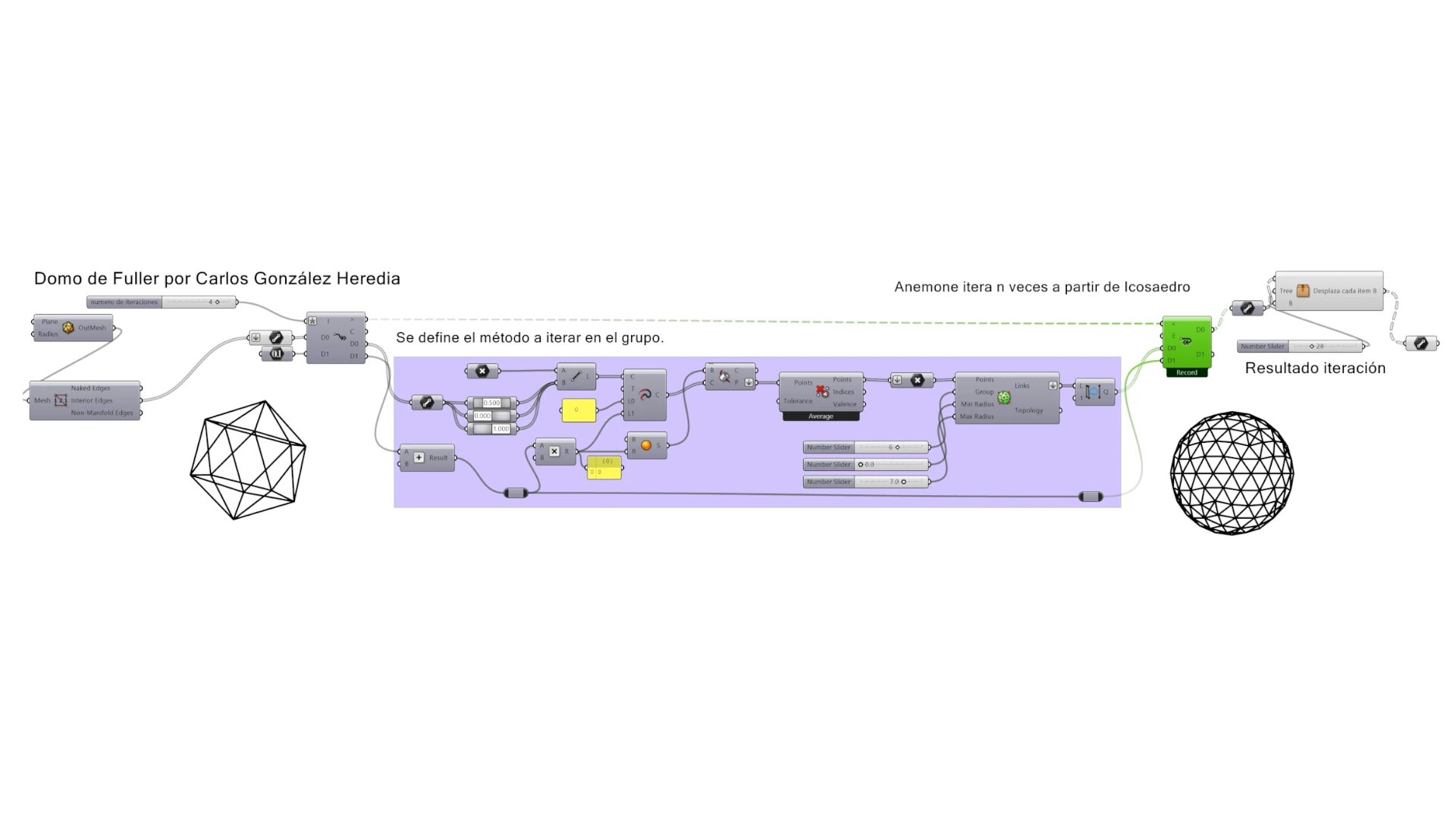

Generation of a Richard Buckminster Fuller dome. Frequency n ≤ 5. Anemone is a Grasshopper plugin for iterating blocks.

📄 View PDF
Gallery
Fuller dome using Anemone for loop control 1Fuller dome using Anemone for loop control 2Fuller dome using Anemone for loop control 3Fuller dome using Anemone for loop control 4Fuller dome using Anemone for loop control 5
Parametric hydrofoil from a NACA profile
Parametric hydrofoil

Parametric hydrofoil from a NACA profile

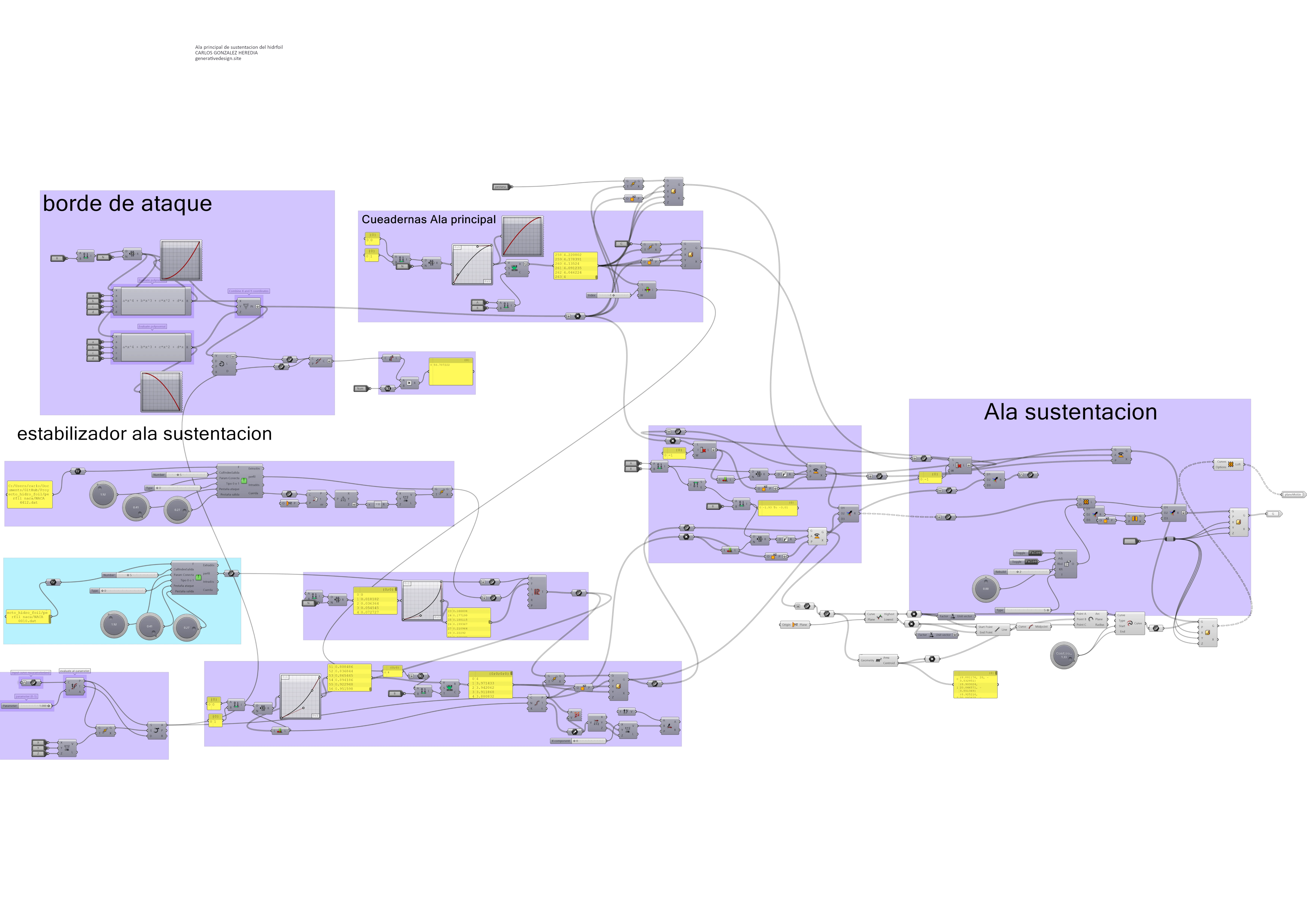

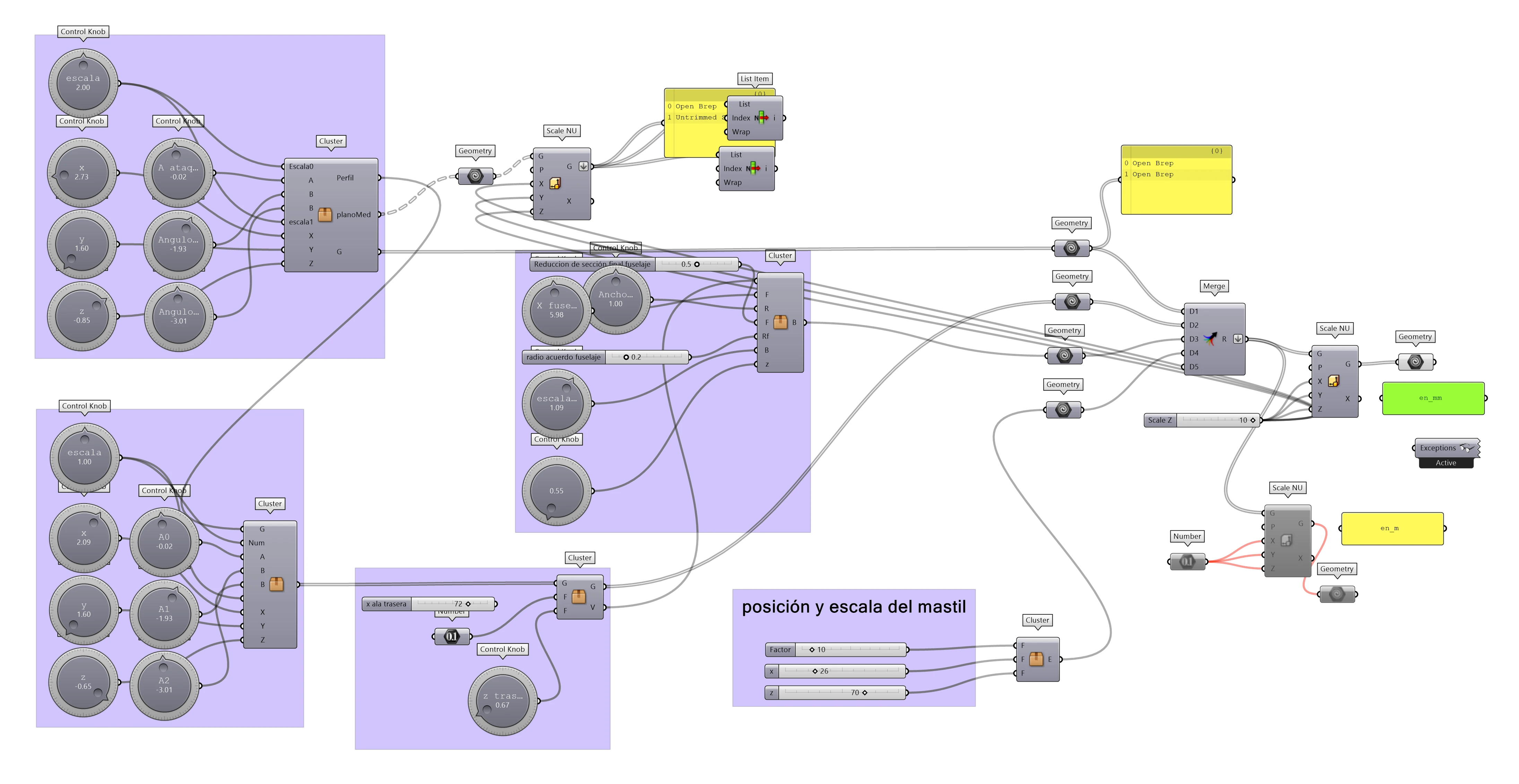

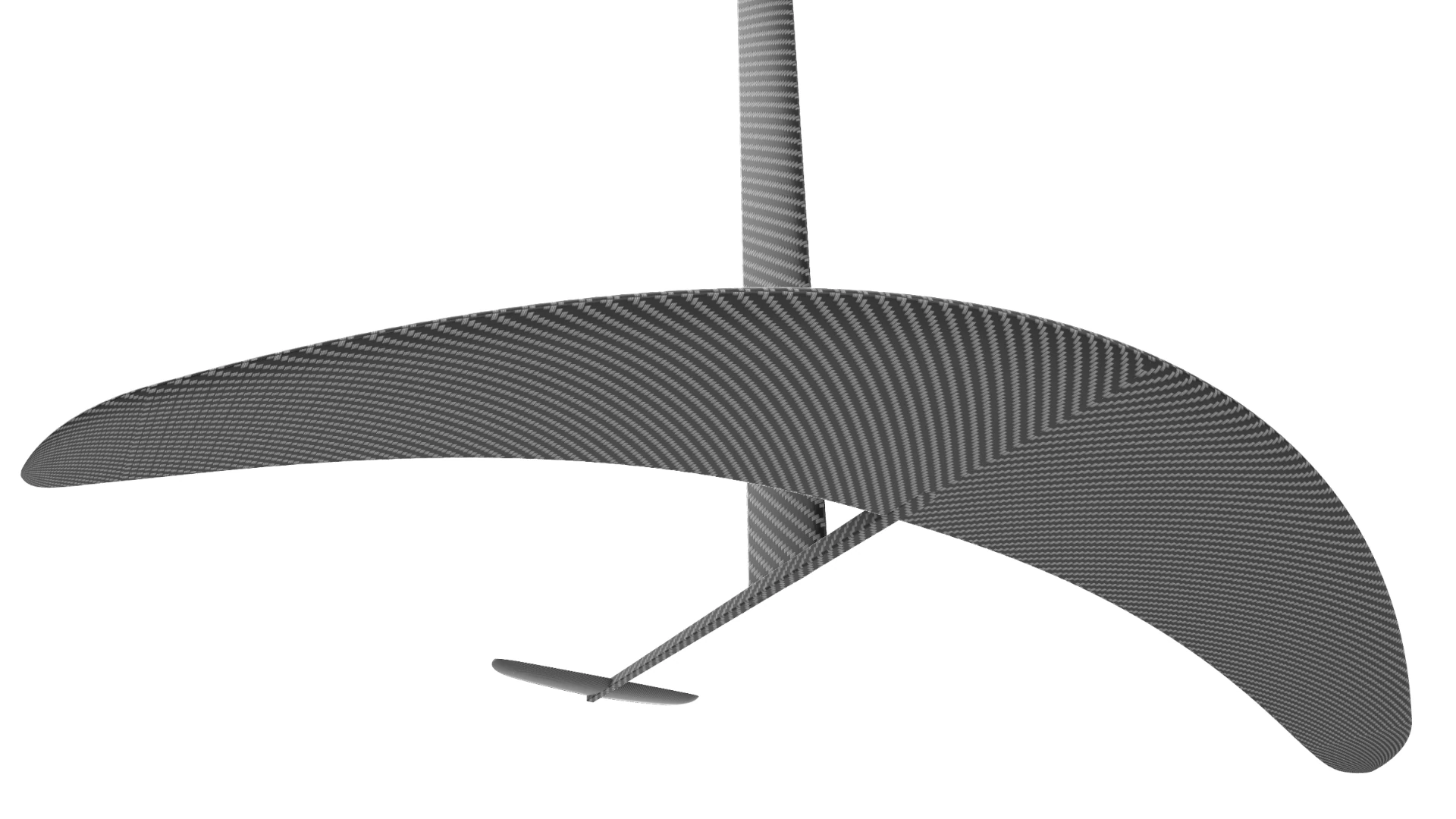

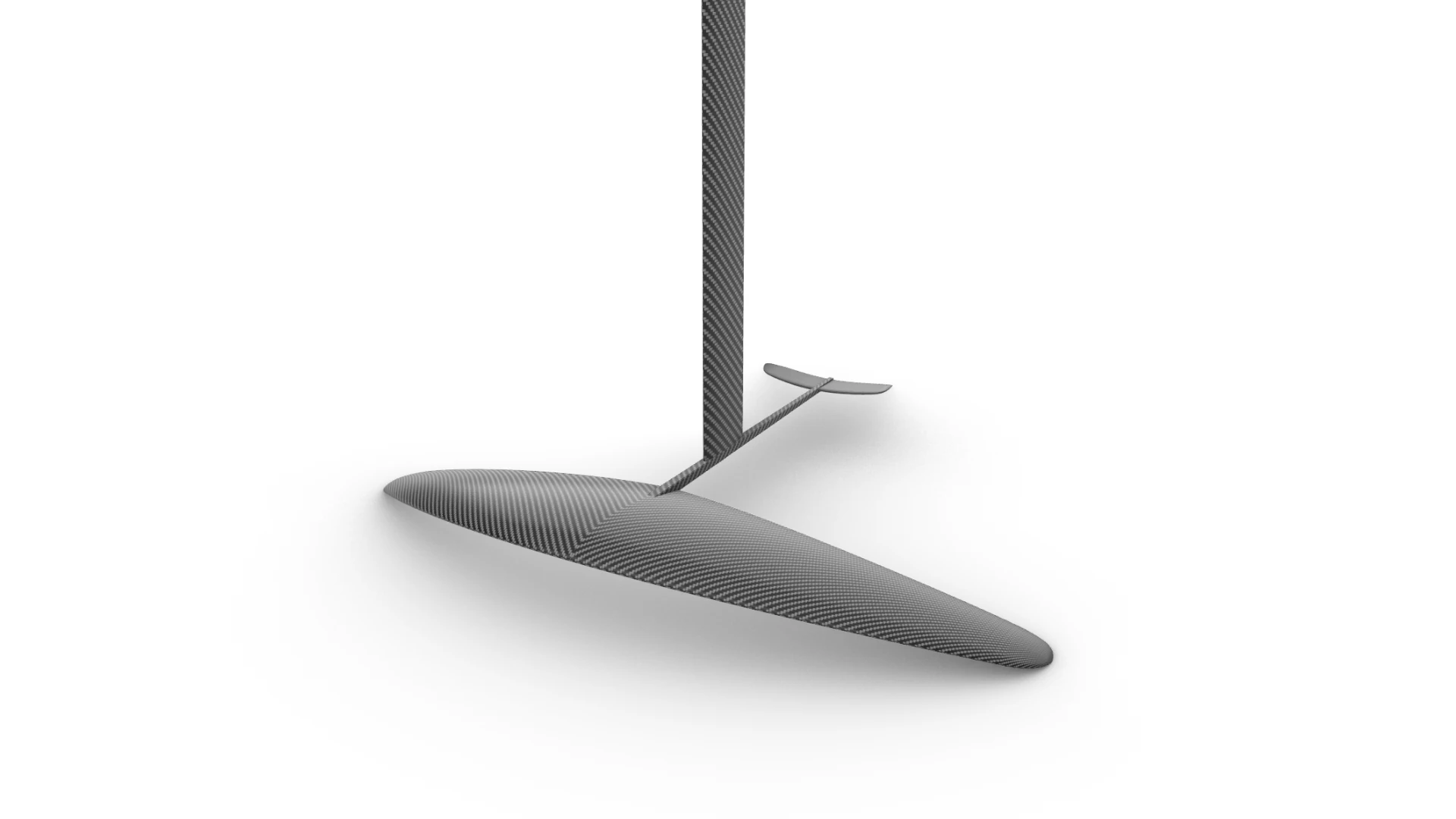

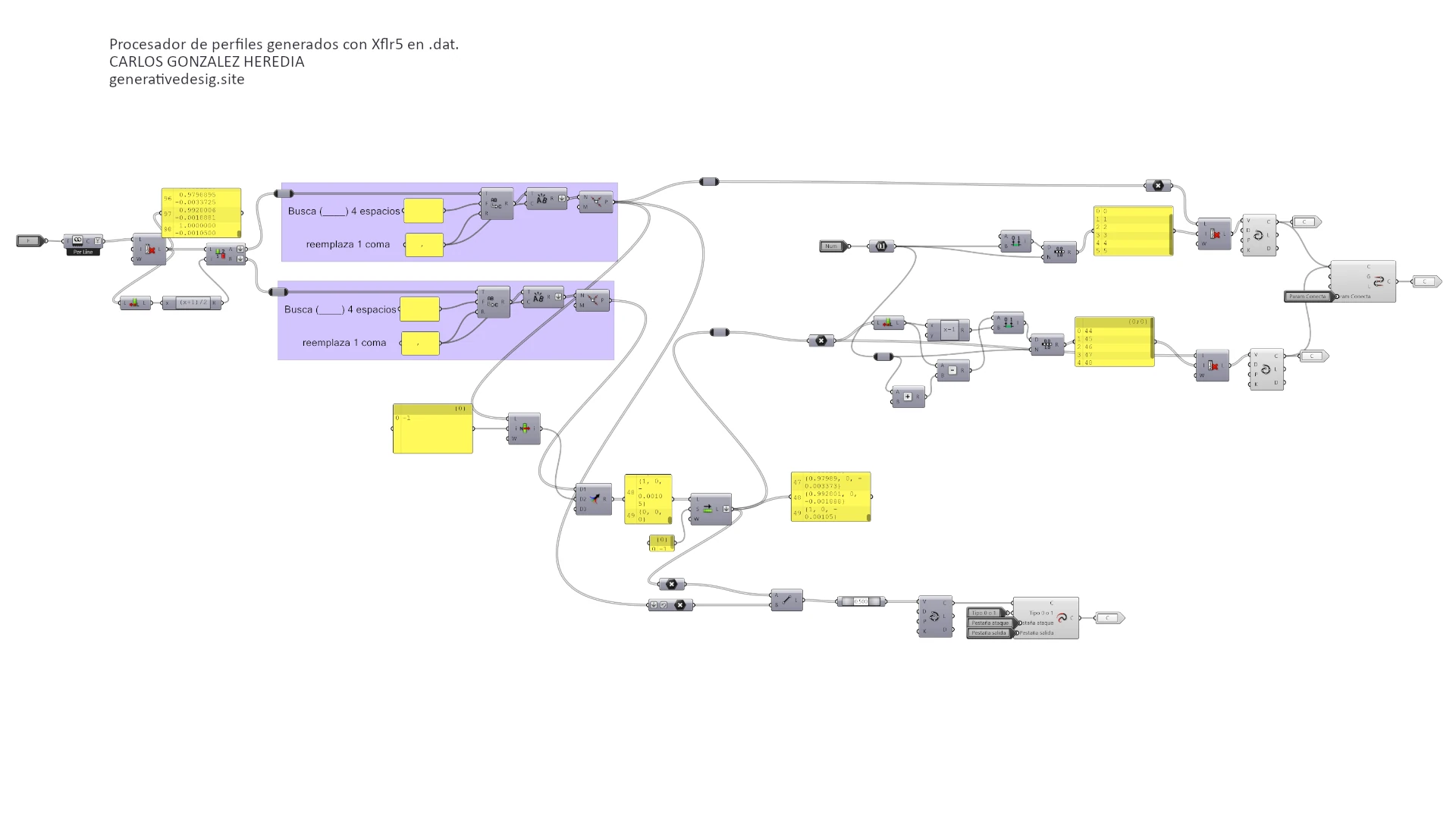

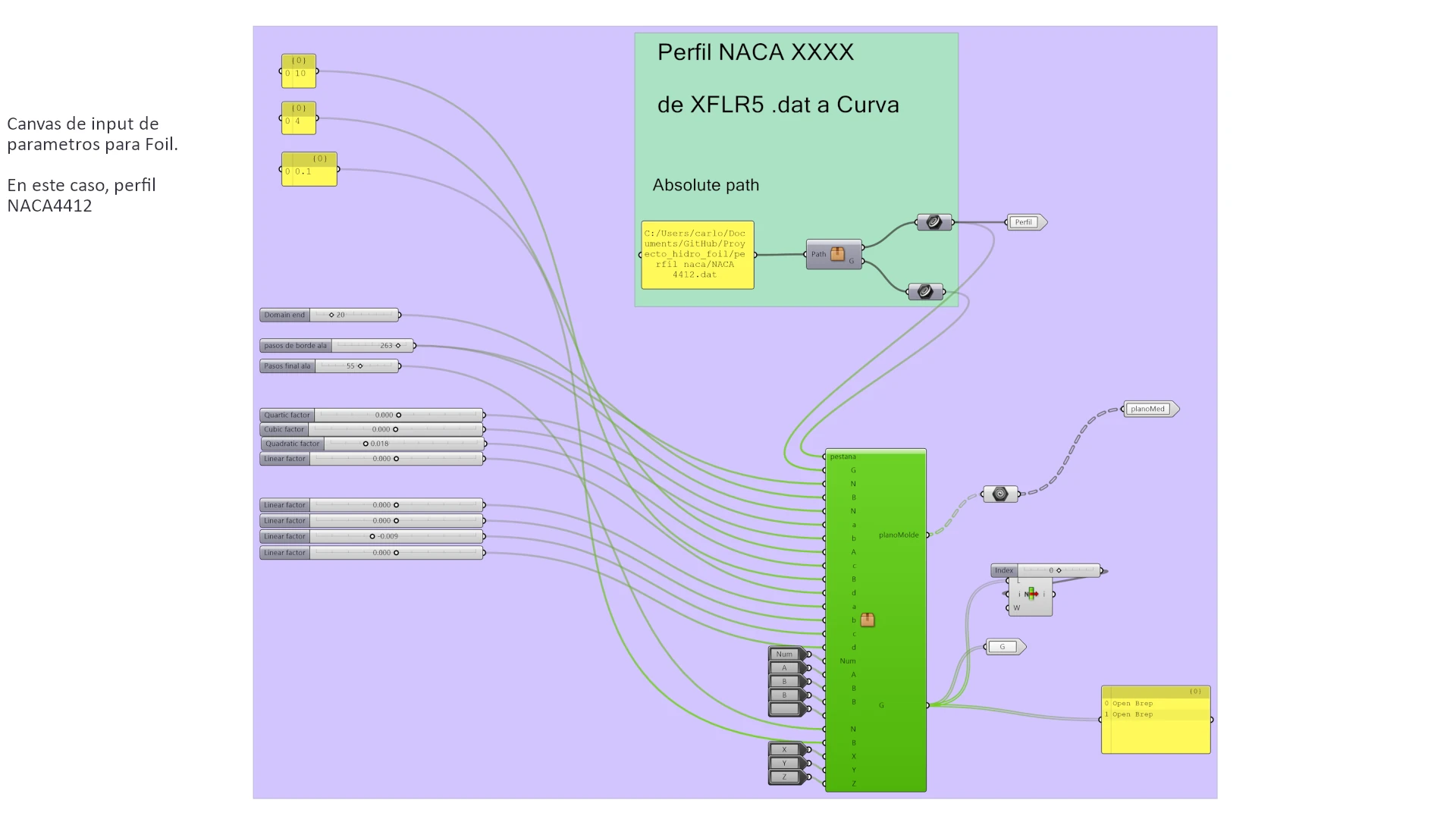

The profile is generated in XFLR5 and exported to .dat; Grasshopper reads it from the path. Progressive angles of attack (initial, final, mid) and dihedral can be controlled.

📄 View PDF
Gallery
Parametric hydrofoil from a NACA profile 1Parametric hydrofoil from a NACA profile 2Parametric hydrofoil from a NACA profile 3Parametric hydrofoil from a NACA profile 4Parametric hydrofoil from a NACA profile 5Parametric hydrofoil from a NACA profile 6
Self-supporting roof with the Kangaroo solver
Form finding with Grasshopper

Self-supporting roof with the Kangaroo solver

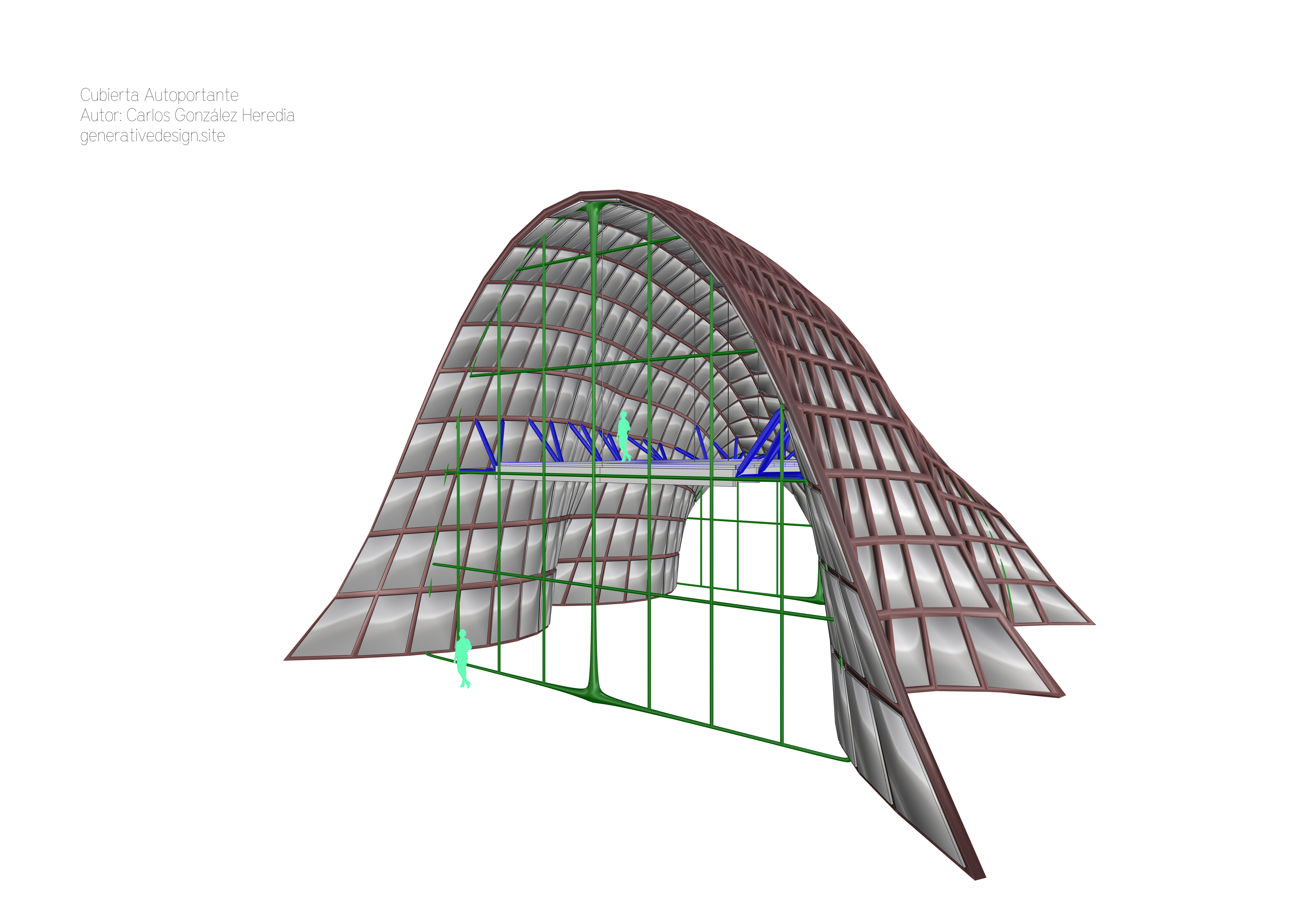

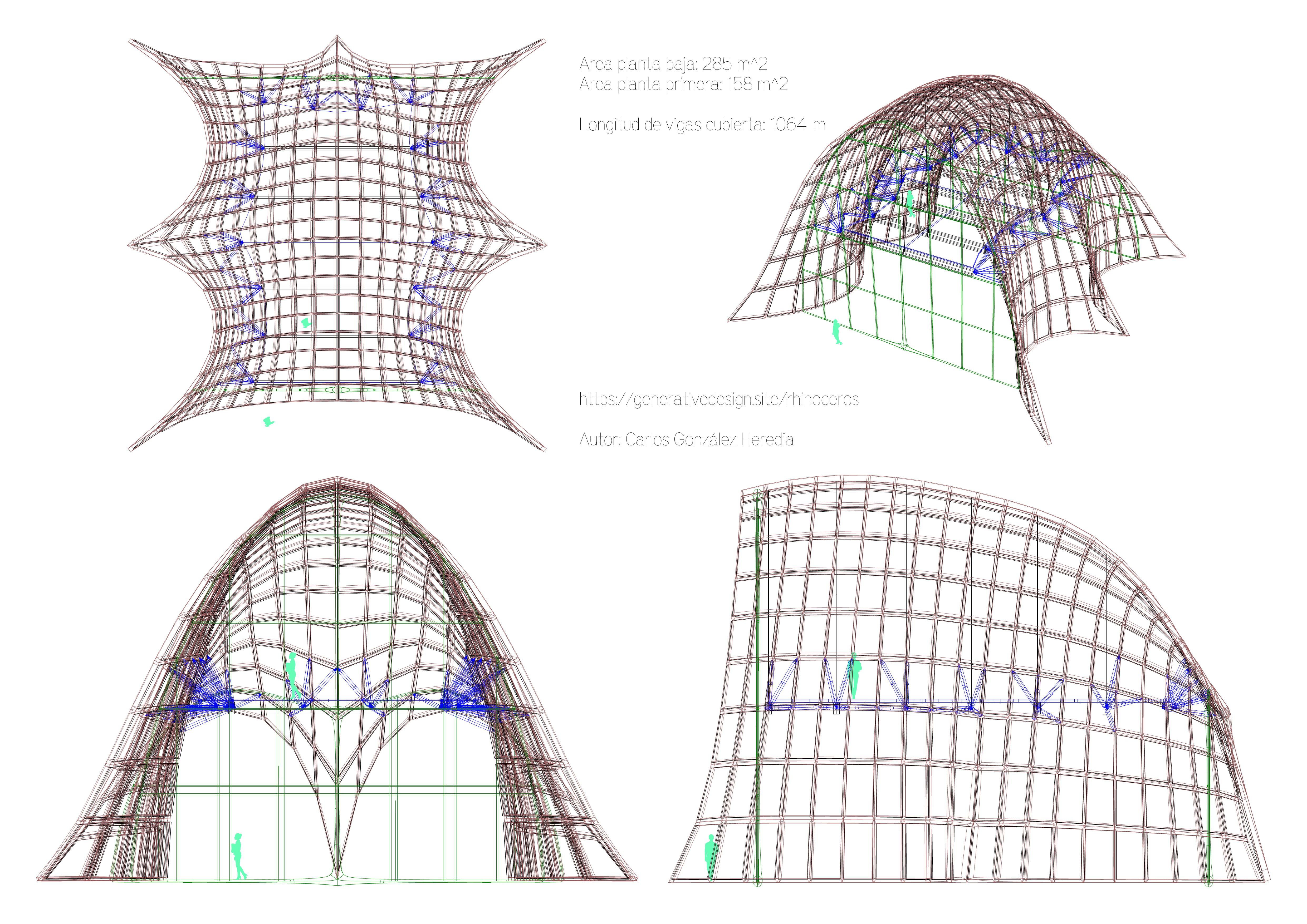

A mesh is created with a physical solver of springs and gravity. The system's K and g can be tuned until the desired mesh is found; the design is parameterized with Grasshopper and Weaverbird.

📄 View PDF
Gallery
Self-supporting roof with the Kangaroo solver 1Self-supporting roof with the Kangaroo solver 3Self-supporting roof with the Kangaroo solver 4Self-supporting roof with the Kangaroo solver 5
